PROJECT TITLE:

65 CV Helicone Mixer

PROJECT DESCRIPTION:

Our customer is a design engineering firm that specializes in helicone mixers for the chemical processing industry. They came to Magna due to our vast knowledge of manufacturing industrial mixing equipment. Special fixturing, tooling and programming are needed to successfully manufacture this type of mixer.

CAPABILITIES APPLIED/PROCESSES

Primary:

  • Turning
  • Boring
  • Milling
  • Drilling

Secondary:

  • Polishing
  • Welding
  • Assembly



EQUIPMENT USED TO MANUFACTURE PART

  • CNC VTL
  • CNC Mill
  • Welders

OVERALL PART DIMENSIONS

  • Length: 48”
  • Height: 60”
  • Width: 36”
  • Weight: 8000 Lbs

TIGHTEST TOLERANCES

  • +/- .001”

MATERIAL USED

  • Stainless Steel

MATERIAL FINISH

  • 8 Ra

INDUSTRY FOR USE

  • Chemical Processing

IN PROCESS TESTING/INSPECTION PERFORMED

  • Assembly to pull vacuum

VOLUME

  • One unit

DELIVERY/TURNAROUND TIME

  • 18 weeks

DELIVERY LOCATION

  • United States

STANDARDS MET

  • Built Per Customers Specifications

SPECIAL FEATURES

  • Conical / Twin Blade Agitators

NOTABLE

This unit highlights our longstanding ability to manufactured smaller units.

The client chose us based on other similar projects that they were happy with.

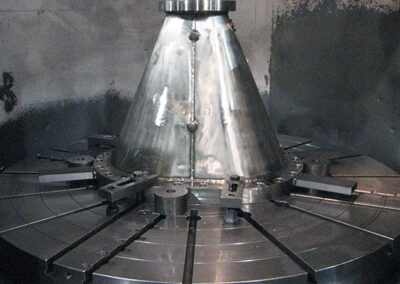

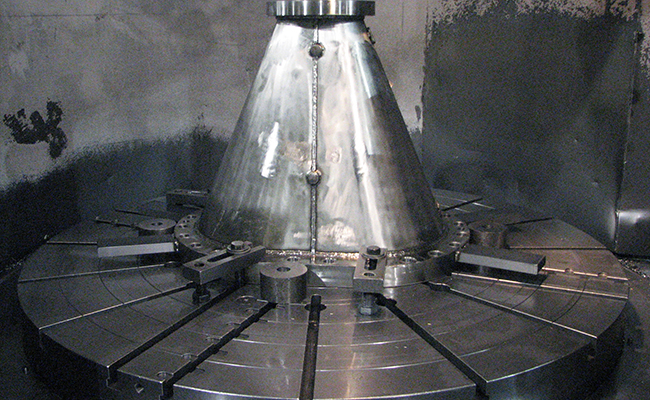

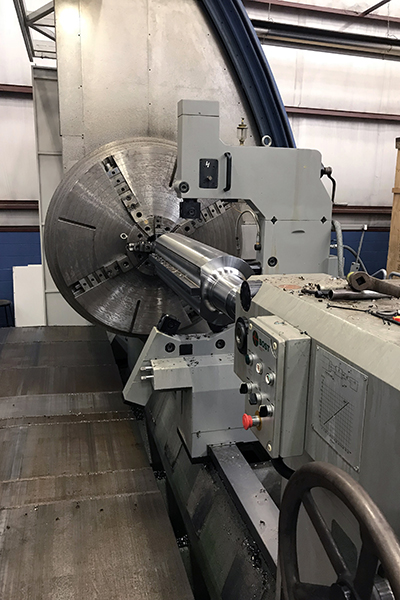

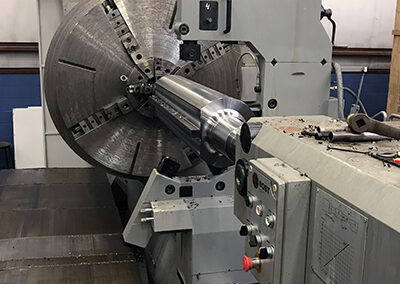

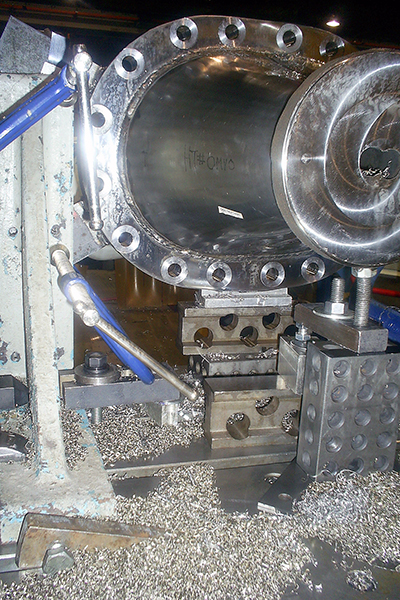

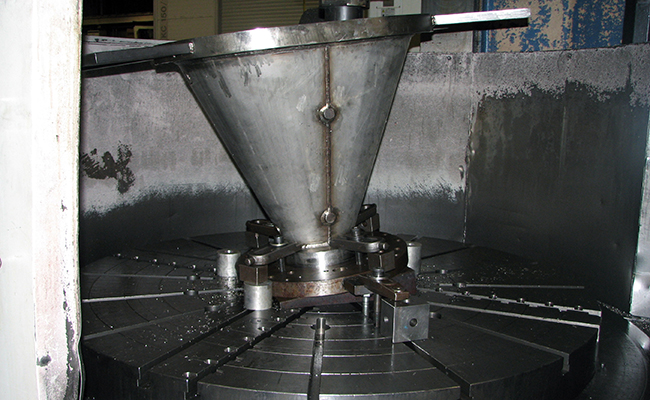

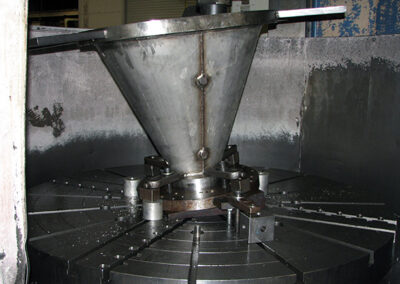

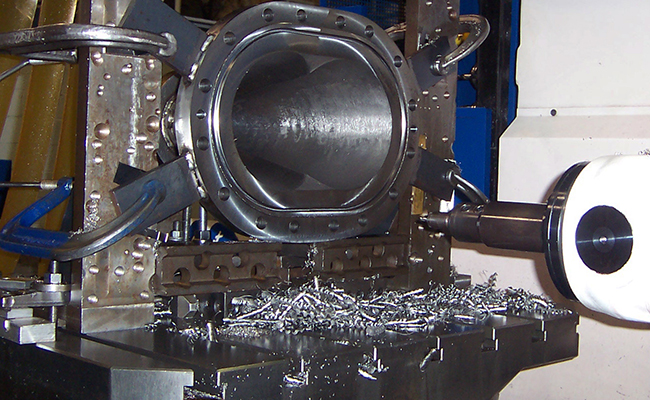

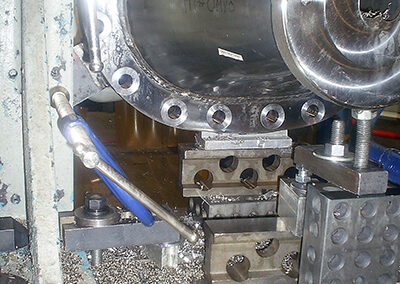

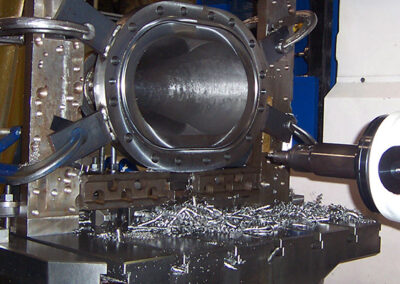

Difficulties Overcome: Designing of special holding fixtures.

Positive Client Feedback: Fit up and installation of unit on site was flawless.

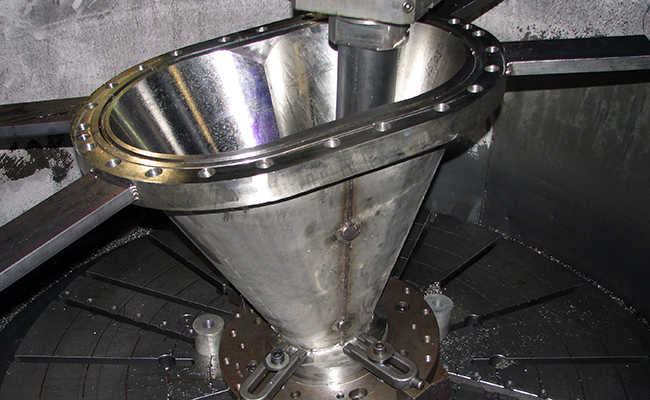

Special Feature of this Product: Tapered and angled bores in tank and agitators range from 24” diameter down to 4” diameter.

Finished Product:

  • Machinists
  • Certified Welders
  • Polishers
  • Assemblers
